A spray foam roofing robot installing foam on a 384,000 sq. ft. facility in Ohio

MTD Facility – Robotic Spray Foam Roof Restoration (384,000 sq ft)

Greg PalyaProject Profiles

Introduction

MTD entrusted West Roofing Systems to restore its 384,000 sq ft metal roof. What made this job unique: instead of a standard manual application, three spray-foam robots worked together to apply 2.5″ of closed-cell SPF in a single pass.

The project was completed in 52 days by a 14-person crew, delivering a high-performance, energy-efficient roof backed by a 20-year full-system warranty.

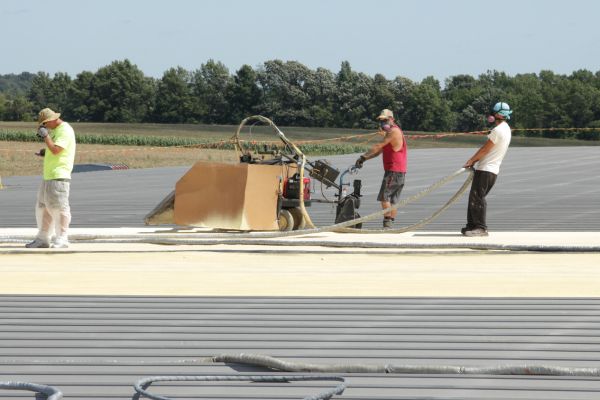

Robotic application of spray polyurethane foam on MTD metal roof

Project Challenges

  • Massive roof size: 384,000 sq ft of metal requiring restoration
  • Tight schedule: needed to complete the work in 52 days
  • Safety concerns: potential overspray when using high-output robotic sprayers
  • Temperature fluctuations: ambient weather changed drastically during installation, affecting foam behavior
  • Maintaining building operations and ground-level safety during installation

Our Solution

  1. Pilot Test
    • Before committing to the whole roof, West Roofing tested a 16,000 sq ft section with 2.5″ of SPF over five years. The performance met expectations, giving MTD confidence to move forward.
  2. Robotic Foam Application
    • Deployed 3 spray-foam robots to apply PremiSEAL 60R in a single continuous pass.
    • A 14-person crew worked in tandem, averaging ~7,384 sq ft/day to hit the 52-day timeline.

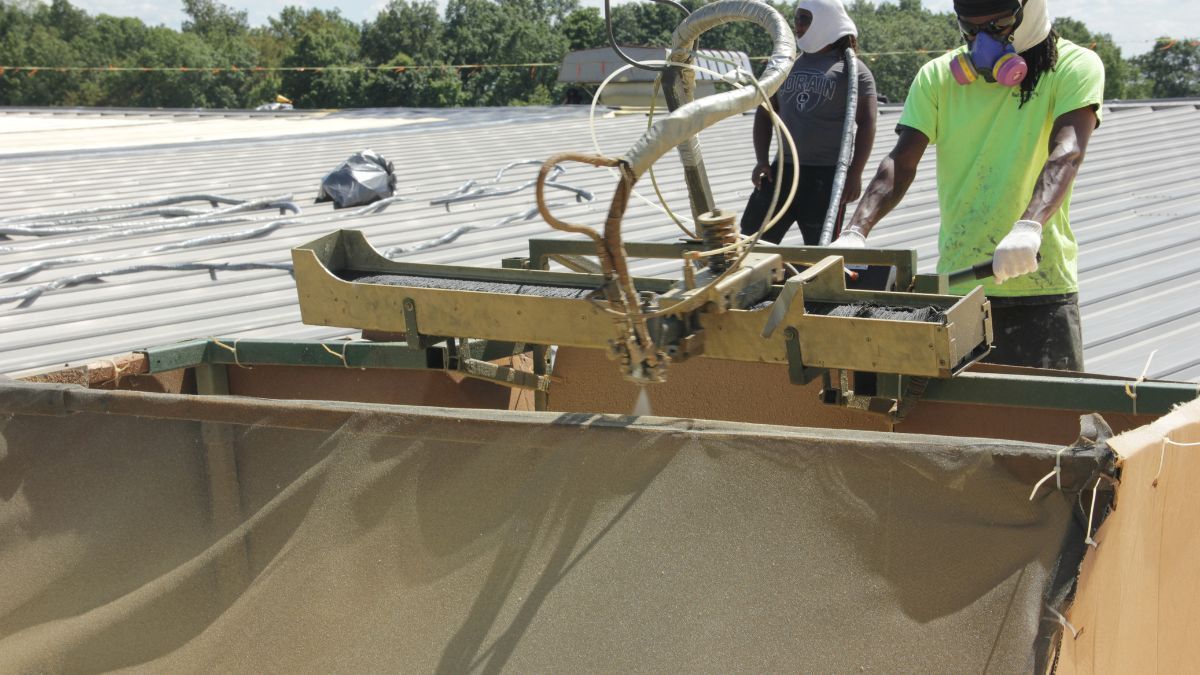

    • To manage overspray risks, custom foam-blocking skirts were used on the robots. Hand-held wind screens were used during windy periods.
  3. Coating & Finishing
    • After foam application, they installed 30 mil SeamlesSEAL ULTRA HS silicone coating over the foam for UV protection and waterproofing.
    • Completed the system with metal edge flashing, new gutters, downspouts, and rake edges.

Warranty & Protection

  • The entire restored system is backed by a 20-year manufacturer’s total system warranty.
  • Added insulation value: the new roof provides R-28 (more than double the previous R-value).

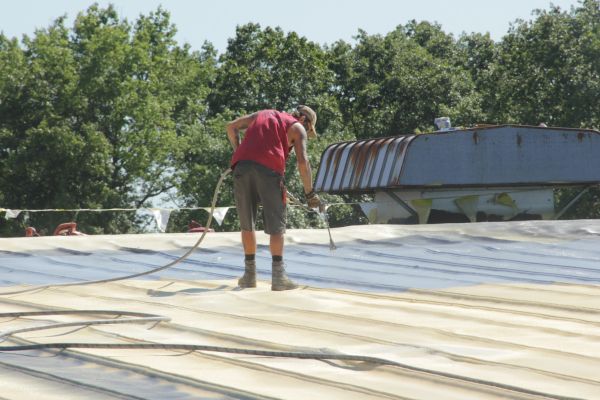

Silicone coating being installed over spray foam at MTD in Willard, Ohio.

Results & Benefits

  • Speed & Efficiency: Using a robotic application enabled the roof to be completed in under two months.
  • Thermal Performance: With 2.5″ of SPF, MTD got a high R-value roof (~R-28), reducing energy costs.
  • Cost Savings & Sustainability: Instead of tearing off the metal roof (and generating scrap), this restoration reused the substrate, minimizing waste.
  • Quality & Safety Control: Daily quality checks, a safety checklist, and onsite QC/CRFC inspections kept the job tight.

Want to see the scope of work and before, in-progress, and finished photos? View the PDF:

📄 View the MTD Full Project Profile (PDF)
